Introduction
Power transformers are the backbone of power transmission and distribution systems, with oil-immersed transformers and dry-type resin transformers being the most widely used types. Practical experience and statistics show that insulation system failures account for over 85% of all transformer accidents, directly determining the service life and operational safety of transformers-including critical equipment like the 3 phase 100 kva transformer and 100 kva distribution transformer. JINSHANMEN TECHNOLOGY CO., LTD mainly produces oil immersed power transformers, dry-type power transformers, oil immersed three-dimensional coiled power transformers, dry-type three-dimensional coiled power transformers, mining explosion-proof dry-type transformers, mining explosion-proof mobile substations, amorphous alloy power transformers, on load capacity regulating power transformers, locomotive dry-type transformers, as well as prefabricated substations, modular substations, wind energy box type substations, high and low voltage switchgear and other transmission and distribution equipment. Proper understanding of insulation failures and scientific maintenance are crucial to ensuring the reliability of these transformers.
1. Core Role of Transformer Insulation Systems
The insulation system of a transformer, composed of insulation materials such as oil, paper, and resin, is the basic guarantee for its normal operation. The service life of a transformer is essentially determined by the lifespan of these insulation materials. For key equipment like the 3 phase 100 kva transformer and 100 kva distribution transformer, a well-maintained insulation system can extend their service life to 20-30 years, while neglecting insulation maintenance will lead to accelerated aging and frequent failures.

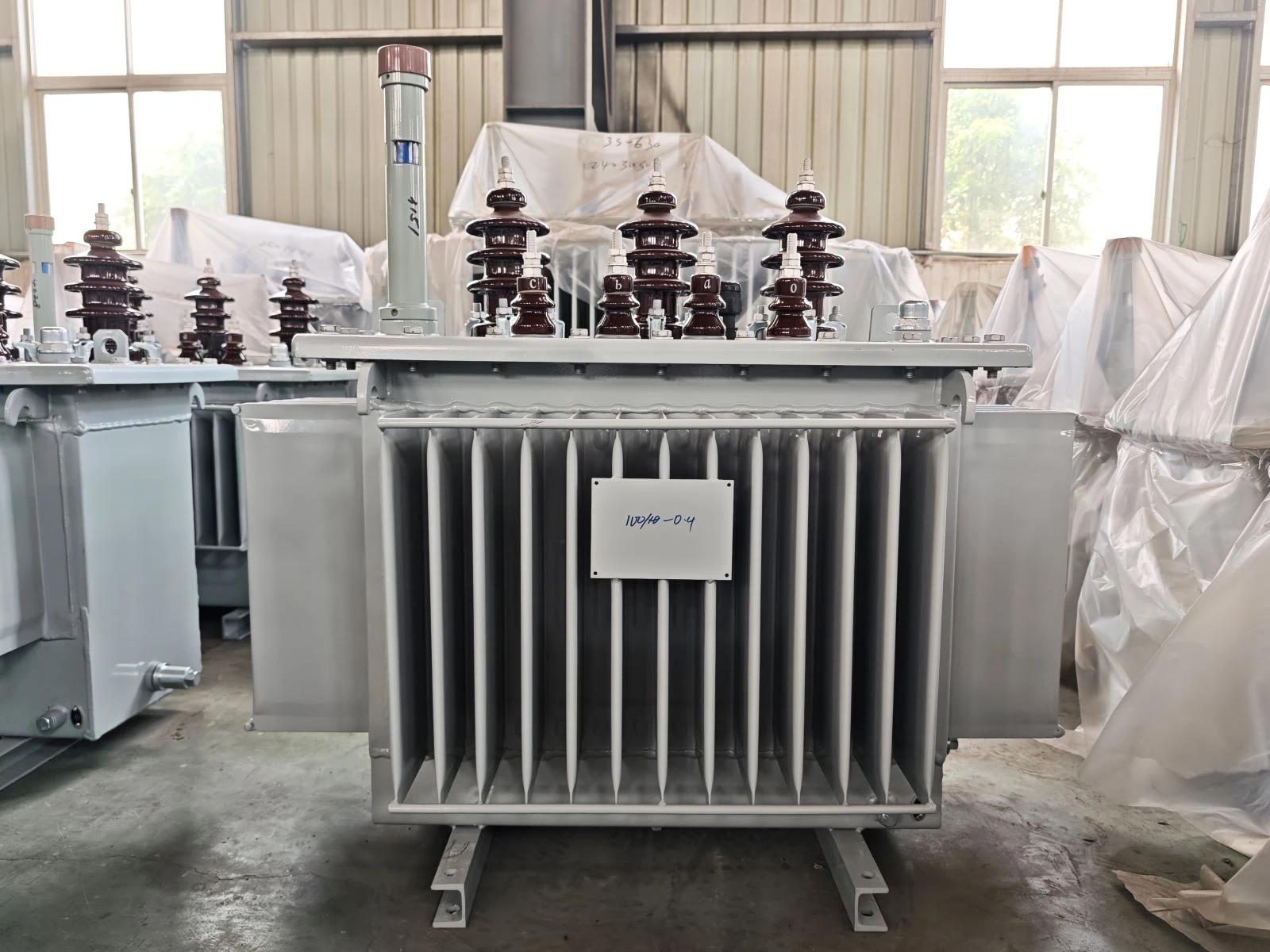

2. Main Insulation Failures of Oil-Immersed Transformers
Oil-immersed transformers rely on two core insulation components: solid paper insulation and liquid oil insulation. These two systems are equally important for the stable operation of the 100 kva distribution transformer and 3 phase 100 kva transformer.
2.1 Solid Paper Insulation Failures
Solid paper insulation (including insulation paper, boards, and mats) is mainly composed of cellulose. Its aging is irreversible-with the polymerization degree dropping from 1300 (for new paper) to 150-200 (end of life), mechanical strength decreases by more than 50%. Common failures include fiber embrittlement, reduced mechanical strength, and shrinkage, which can lead to winding displacement and insulation breakdown under short-circuit current or mechanical vibration. For the 3 phase 100 kva transformer, regular testing of paper polymerization degree and furfural content in oil is essential to monitor insulation status.
2.2 Liquid Oil Insulation Failures
Transformer oil enhances insulation strength and dissipates heat. Its deterioration occurs in two stages: contamination (moisture/impurities) and oxidation (acidification, sludge formation). Sludge adheres to windings and radiators, blocking heat dissipation and accelerating insulation aging. For the 100 kva distribution transformer, regular testing of acid value, moisture content, and dielectric loss is necessary. Measures like vacuum oil filtration and oil regeneration can effectively restore oil quality.
3. Insulation Characteristics & Maintenance of Dry-Type Resin Transformers
Dry-type resin transformers are widely used in fire-prone areas like high-rise buildings and airports. Their insulation performance is closely related to temperature rise and partial discharge, which also affects the operational stability of the 100 kva distribution transformer.
3.1 Insulation Types
Common types include epoxy quartz sand vacuum casting, epoxy glass fiber reinforced casting, and glass fiber wrapping impregnation. Poor casting quality (e.g., residual bubbles) or incomplete impregnation can lead to partial discharge, which is a key risk point for the 3 phase 100 kva transformer in harsh environments.
3.2 Key Maintenance Points
Monitor hot-spot temperature: Use infrared thermometers to check high-temperature areas during peak loads and adjust cooling fans.
Test partial discharge: Conduct tests after commissioning and overhauls to ensure stable insulation performance.
4. Key Factors Affecting Transformer Insulation
4.1 Temperature
Following the IEC "6°C Rule," each 6°C increase above the rated temperature doubles the insulation aging rate. Overloading the 3 phase 100 kva transformer will significantly shorten its service life.
4.2 Humidity
Moisture accelerates cellulose degradation and reduces oil insulation strength. Strict moisture control during installation and maintenance is critical for the 100 kva distribution transformer.
4.3 Other Factors
Oxygen content (related to oil protection methods), overvoltage (transient, lightning, operational), and short-circuit electrodynamic force can all damage insulation.
Conclusion
Insulation failures are the primary cause of transformer accidents. For critical equipment such as the 3 phase 100 kva transformer and 100 kva distribution transformer, proactive maintenance-including regular insulation testing, temperature/humidity control, and oil quality management-is the key to extending service life and ensuring power supply reliability. JINSHANMEN TECHNOLOGY CO., LTD's comprehensive product line of oil-immersed and dry-type transformers adheres to strict insulation design standards. Choosing reliable products from JINSHANMEN TECHNOLOGY CO., LTD and implementing scientific maintenance will effectively reduce insulation-related failures.
