Key Features

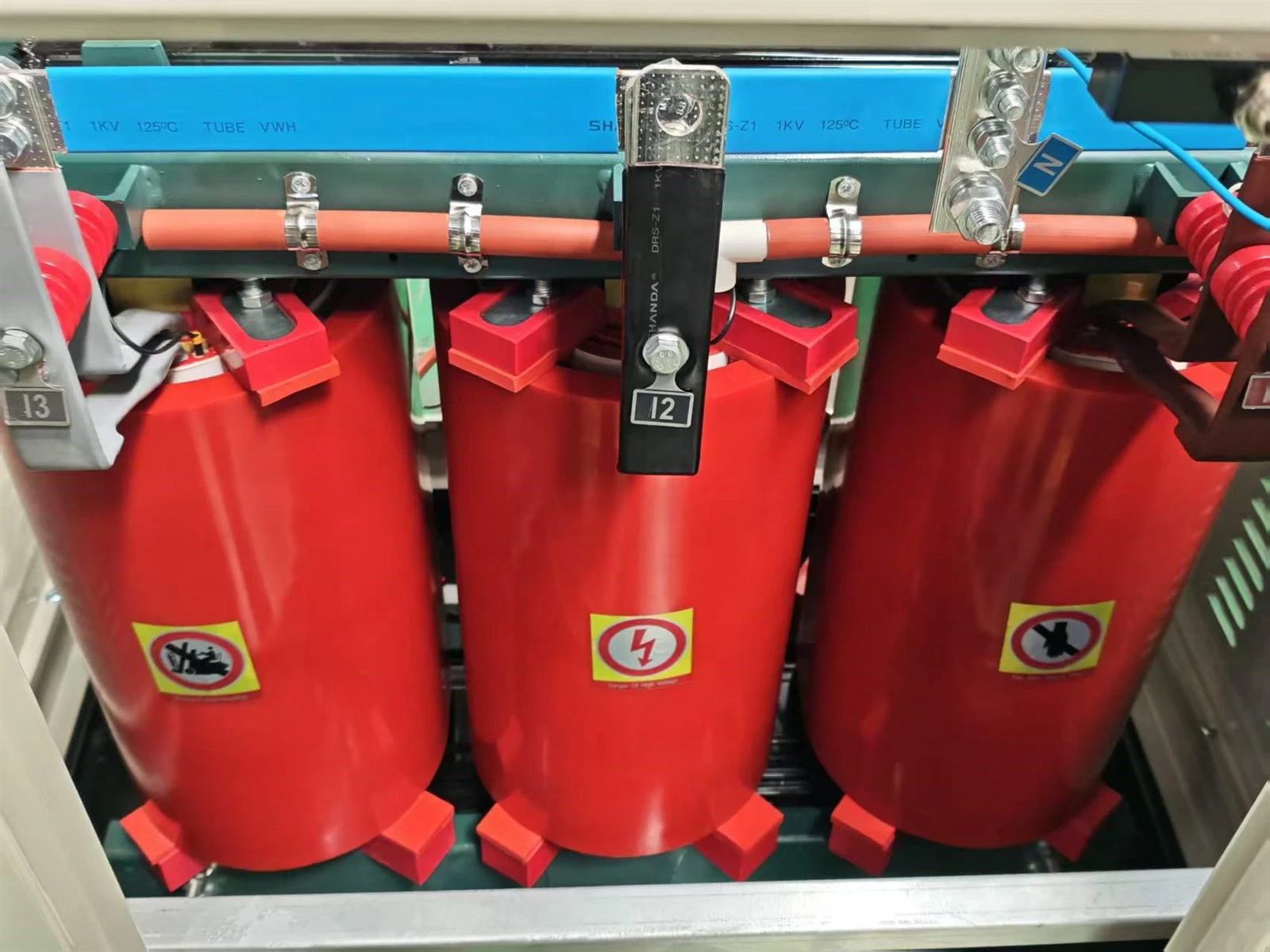

Epoxy Cast Resin Windings - Excellent moisture resistance, anti-pollution, and short-circuit withstand capability. Suitable for humid or dusty environments.
Low Noise Operation - Core constructed with high-permeability grain-oriented silicon steel, step-lap joint design, noise level ≤ 45dB at 1m.
Fire Safety - F-class insulation with flame-retardant epoxy. No oil, no toxic gas emission under fault conditions. Compliant with fire safety requirements for indoor co
mmercial and data center installations.
Maintenance-Free - No oil sampling, no dielectric fluid monitoring. Annual visual inspection is sufficient under normal conditions.
Compact Footprint - Enclosure design allows side-by-side installation, saving floor space in containerized BESS or edge data center modules.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Rated Capacity |
160 kVA |
|
Primary Voltage |
0.96 kV (960V) |
|
Secondary Voltage |
0.38 kV (380V) |
|
Vector Group |
Dyn11 (standard) / Yyn0 (optional) |
|
Frequency |
50Hz / 60Hz |
|
Cooling Method |
AN (Air Natural) |
|
Insulation Class |
F (155°C) |
|
Temperature Rise Limit |
100K (winding) |
|
Winding Material |
Copper / Aluminum (optional) |
|
Enclosure Rating |
IP20 (standard) / IP23 (optional) |
|
Ambient Temperature |
-25°C to +40°C |
|
Altitude |
≤ 1000m |
|
Standards |
IEC 60076 / GB 1094 |
Performance Data - No-Load & Load Losses
|
Test Condition |
Parameter |
Value |
|---|---|---|
|
No-Load Loss (P₀) |
Rated voltage applied to HV side, LV open |
≤ 480 W |
|
No-Load Current (I₀) |
At rated voltage |
≤ 2.0% |
|
Load Loss (Pₖ) |
At 75°C reference, rated current |
≤ 1850 W |
|
Impedance Voltage (Uk) |
At rated frequency & current |
4.0% ± 10% |
|
Total Loss (P₀ + Pₖ) |
Combined |
≤ 2330 W |
Project Reference - Hong Kong
A Hong Kong-based energy engineering firm has procured this 160kVA 0.96/0.38kV dry-type transformer for deployment in their integrated solar-storage-microgrid project. The unit has passed routine factory testing including:
Turns ratio test
Winding resistance measurement
No-load loss & current test
Load loss & impedance voltage test
Applied voltage & induced overvoltage test
Insulation resistance & polarization index

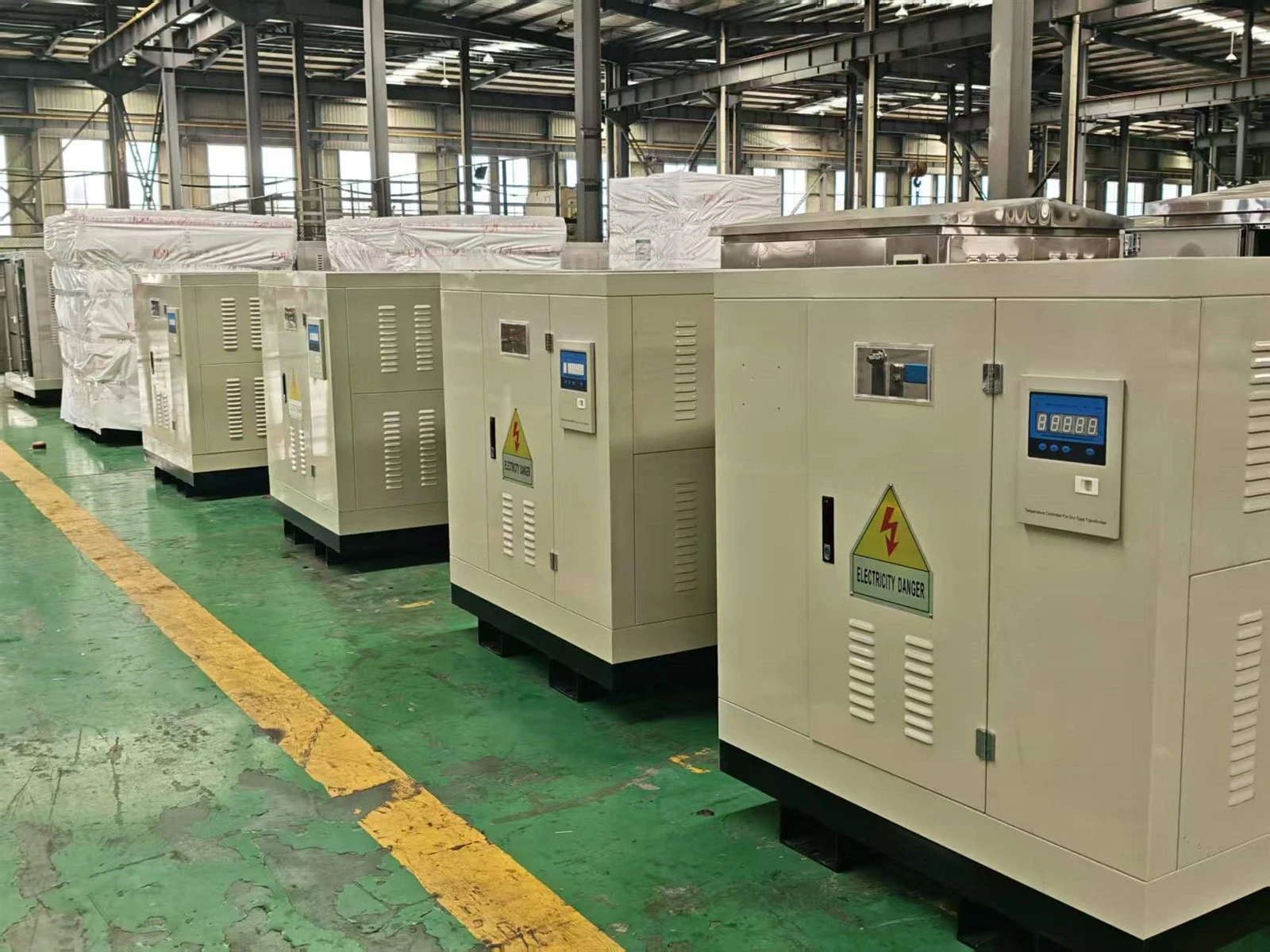

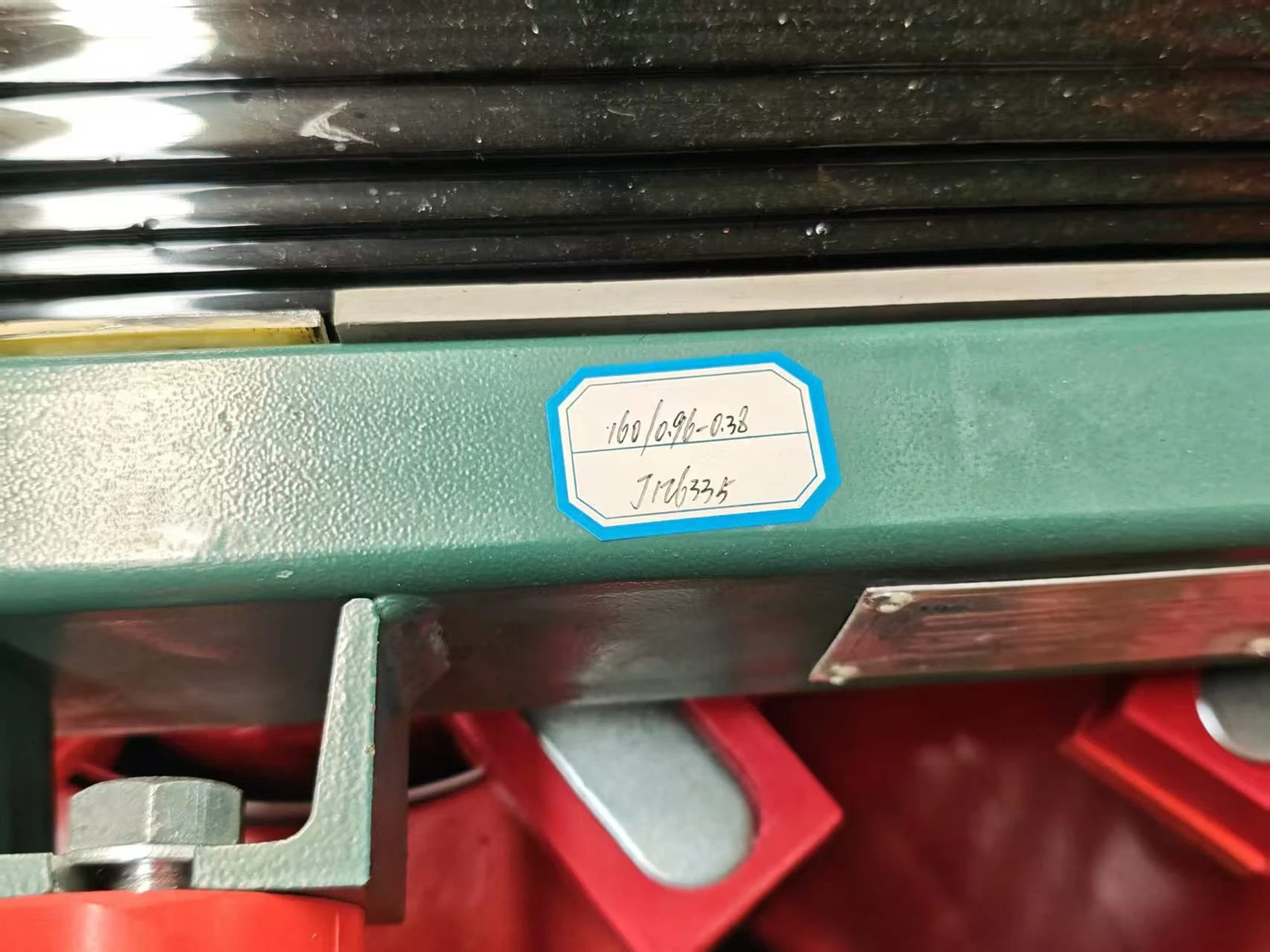

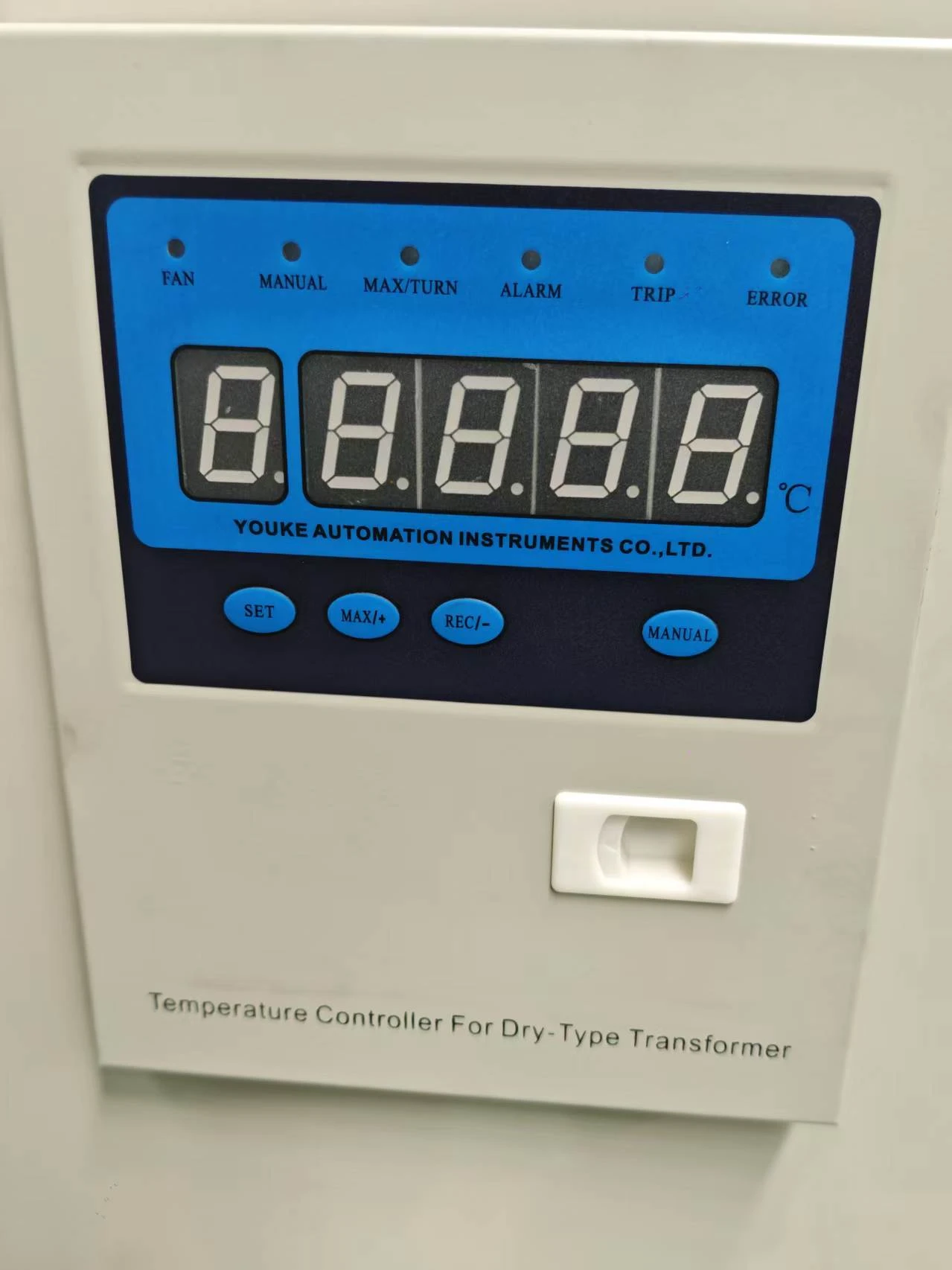

Status: Production completed. Final inspection passed. Ready for shipment and immediate delivery.
|
Advantage |
Detail |
|---|---|
|
Proven Design |
Same platform supplied to multiple APAC solar & storage projects |
|
Fast Delivery |
Standard configuration in stock; custom specs 3–4 weeks |
|
Technical Support |
Pre-sales sizing assistance + post-sales commissioning guidance |
|
Compliance |
IEC / GB standards; third-party testing available upon request |
Get a Quote
For pricing, lead time, or technical drawings (outline dimensions, terminal arrangement, foundation plan), please contact our sales team. Custom specifications (different impedance, tap changer, higher IP rating) are available on request.
All specifications are subject to final engineering confirmation. Performance data provided for reference only and may vary within IEC tolerance limits.
