In modern commercial facility design, achieving reliable, balanced, and energy‑efficient power distribution is essential. While major industrial complexes rely on multi‑megawatt substations, commercial buildings-such as retail centers, office complexes, medical facilities, and educational campuses-frequently depend on compact, localized step‑down solutions.
Small‑capacity units ranging from a 5kVA to 150kVA three‑phase transformer play a vital role in stepping down internal distribution voltages to low utilization levels (such as 400V, 208V, or 120V) right at the load center. Additionally, stepping down primary medium‑voltage utility feeds within the 6‑11kV range provides the foundational infrastructure needed to power modern commercial operations safely.
In this guide, we explore the primary technical advantages and everyday commercial application scenarios for small‑capacity three‑phase transformers.
Ⅰ. Why Choose Small‑Capacity Three‑Phase Transformers?
Three‑phase systems deliver continuous, smooth power displacement (120 degrees apart), offering significantly higher power density and motor‑starting capability compared to single‑phase equivalents. Utilizing a 5kVA to 150kVA three‑phase transformer in commercial environments provides several core operational benefits:
- Balanced Phase Loading: Spreading single‑phase sub‑loads evenly across three active phases reduces neutral line overheating and voltage drop across building sub‑panels.
- Compact Footprint: Small‑capacity dry‑type or oil‑immersed three‑phase transformers feature reduced cabinet footprints, making them easy to install inside tight electrical closets, basement utility rooms, or overhead mezzanine spaces.
- Reduced Conductor Size: Delivering power via three‑phase circuits decreases the required copper or aluminum conductor cross‑sectional area, lowering initial cabling costs across multi‑story commercial facilities.
Ⅱ. Key Voltage Step‑Down Architecture: 6‑11kV Utility Distribution
In urban and semi‑urban commercial districts, electric utilities typically supply primary power through medium‑voltage underground cables or overhead lines operating within the 6‑11kV distribution range (commonly 6.6kV, 10kV, or 11kV).
Direct Step‑Down to Utilization Voltages
Stepping down directly from 6‑11kV medium‑voltage feeds to standardized low‑voltage commercial levels (e.g., 400V/230V or 208V/120V) provides critical efficiency advantages:
- Lower Transmission Heat Losses: High‑voltage distribution reduces I²R power losses across long horizontal and vertical building risers.
- Localized Voltage Regulation: Installing small step‑down transformers closer to specific equipment clusters isolates voltage fluctuations caused by heavy inductive starting loads.
Ⅲ. Common Use Cases in Commercial Buildings
Small‑capacity three‑phase power transformers within the 5kVA to 150kVA range serve as workhorses across various commercial zones. The power distribution structure for commercial buildings is shown below:
[ Utility Grid: 6‑11kV Medium Voltage ]
↓
[ Primary Commercial Step‑Down Substation ]
↓
(400V / 480V Three‑Phase Bus)
┌────────────────┬────────────────┐
↓ ↓
[15kVA‑50kVA Unit] [75kVA‑150kVA Unit]
• HVAC & Fans • Server Rooms & IT
• Elevators & Pumps • Retail Lighting & Outlets
1. HVAC Systems and Air Handling Equipment (30kVA – 150kVA)
Commercial heating, ventilation, and air conditioning (HVAC) systems demand constant three‑phase power to drive chillers, condenser fans, and large air‑handling units (AHUs). Deploying a dedicated 5kVA to 150kVA three‑phase transformer to serve local HVAC plant rooms prevents harmonic feedback and voltage sag from affecting office workstations or sensitive electronics.
2. Elevator and Escalator Drives (15kVA – 75kVA)
Electric elevators and escalators generate significant starting currents (inrush currents) during startup cycles. Localized three‑phase step‑down transformers handle these transient inductive surges while maintaining stable voltage levels for floor lighting and door control electronics.
3. Server Rooms, Data Centers, and IT Infrastructure (45kVA – 150kVA)
Small‑scale data rooms and office server closets require clean, isolated power. Dedicated three‑phase transformers convert incoming 6‑11kV derived power down to low utilization voltages while isolating sensitive IT hardware from grid transient spikes, neutral‑line noise, and voltage swells.
4. Retail Storefronts and Restaurant Kitchens (5kVA – 30kVA)
Commercial kitchens (utilizing three‑phase induction ovens, deep fryers, and walk‑in freezers) and specialized retail display lighting require balanced low‑voltage distribution. Small 5kVA to 30kVA units offer an economical, space‑saving solution for individual tenant spaces inside shopping malls.
Ⅳ. Technical Selection Matrix: kVA Rating vs. Typical Commercial Application
|
Transformer Rating Range |
Full Load Current (Approx. @ 400V) |
Typical Commercial Applications |
|---|---|---|
|
5 kVA – 15 kVA |
7 A – 22 A |
Localized control panels, small pumps, retail lighting sub‑panels. |
|
30 kVA – 50 kVA |
43 A – 72 A |
Escalators, small commercial kitchens, floor‑level HVAC air handlers. |
|
75 kVA – 112.5 kVA |
108 A – 162 A |
Passenger elevators, office floor distribution, small server closets. |
|
150 kVA |
216 A |
Complete retail store loads, central HVAC chiller pumps, small medical clinics. |
Ⅴ. Essential Considerations When Specifying Small 3‑Phase Transformers
When choosing a small‑capacity transformer for commercial sites, engineers must consider:
1. Insulation Type (Dry‑Type vs. Oil‑Immersed): Indoor commercial closets strictly require cast‑resin or dry‑type air‑cooled units to comply with local building fire codes. Outdoor pad‑mounted setups can utilize oil‑filled designs.
2. Harmonic Mitigation (K‑Factor): Commercial buildings with heavy non‑linear loads (computers, LED drivers, variable frequency drives) require K‑rated transformers (e.g., K‑4 or K‑13) to manage neutral current buildup and core overheating.
3. Sound Levels: Transformers installed near office spaces or residential apartments must meet strict low‑decibel (dB) acoustic standards to prevent operational hum.

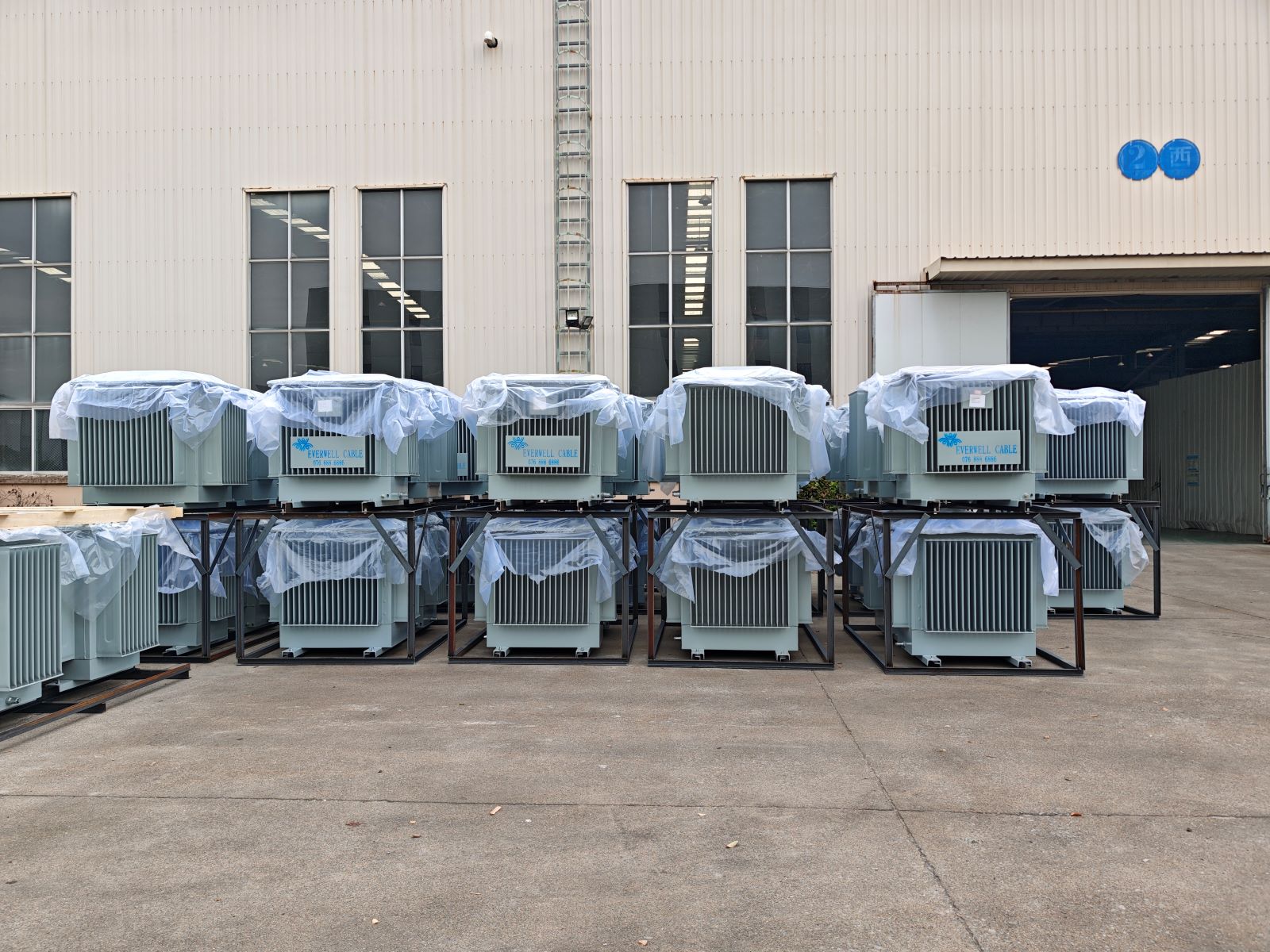

Partnering with JINSHANMEN TECHNOLOGY CO., LTD
Sourcing reliable distribution transformers designed for strict commercial building safety standards requires working with an experienced, certified manufacturer. At JINSHANMEN TECHNOLOGY CO., LTD, we specialize in engineering high‑efficiency transmission and distribution solutions tailored to global utility and commercial construction requirements.
Our Full Product Portfolio:
The company mainly produces oil immersed power transformers, dry‑type power transformers, oil immersed three‑dimensional coiled power transformers, dry‑type three‑dimensional coiled power transformers, mining explosion‑proof dry‑type transformers, mining explosion‑proof mobile substations, amorphous alloy power transformers, on load capacity regulating power transformers, locomotive dry‑type transformers, as well as prefabricated substations, modular substations, wind energy box type substations, high and low voltage switchgear and other transmission and distribution equipment.
Whether you are designing internal commercial distribution systems requiring a compact 5kVA to 150kVA three‑phase transformer or primary medium‑voltage substations operating in the 6‑11kV range, JINSHANMEN TECHNOLOGY CO., LTD provides custom‑engineered, fully certified equipment built for safety, quiet operation, and exceptional long‑term reliability.
