I. Why Transformer Voltage Fluctuates High and Low
Unstable output voltage is one of the most common faults in power transformers. When the secondary voltage rises and falls irregularly, it can affect the safe operation of electrical equipment, shorten service life, and even cause production interruptions. This article analyzes the main causes of unstable voltage and provides practical solutions, with reference to the application characteristics of 1000 kva 3 phase transformer and dry type isolation transformer.
II. Main Causes of Unstable Transformer Output Voltage
1. Unstable Primary Side Voltage
Grid voltage fluctuation is the most direct cause of unstable output. For a 1000 kva 3 phase transformer used in industrial and distribution scenarios, inconsistent high-voltage input will directly lead to obvious secondary voltage changes.
2. Large and Frequent Load Fluctuations
When heavy loads such as large motors, compressors, or inverters start and stop frequently, the load current changes sharply. If the load exceeds the transformer's rated capacity, the output voltage drops significantly; when the load decreases, the voltage rebounds. This phenomenon is particularly obvious in precision power supply systems equipped with a dry type isolation transformer.
3. Voltage Drop Caused by Line Losses
As load current increases, the voltage drop on transmission lines increases accordingly. Long power supply distances, undersized cables, or poor line connections will further amplify voltage instability, which is very common in terminal power supply applications of 1000 kva 3 phase transformer.
4. Impact of Nearby High-Power Equipment
The startup and shutdown of large electrical equipment will produce instantaneous high current, causing voltage surges or dips in the power grid. This impact will directly affect the output stability of nearby transformers, including dry type isolation transformer for precision loads.
5. Internal Defects or Aging of the Transformer
Poor contact of tap changers, damaged windings, core faults, loose wiring, and insulation aging can also lead to unstable output voltage and require professional inspection and maintenance.
III. How to Fix Unstable Transformer Output Voltage
1. Adjust the Transformer Tap Changer
Most distribution transformers are equipped with off‑load tap changers, usually with three gears. By adjusting the number of winding turns, the output voltage can be adjusted.
- If output voltage is too low: switch to a lower turn ratio gear
- If output voltage is too high: switch to a higher turn ratio gear
Always cut off power before operation and measure DC resistance to ensure phase balance.
2. Optimize Load Management
Balance three‑phase load, avoid simultaneous startup of high-power equipment, and use soft starters or frequency converters to reduce inrush current impact on 1000 kva 3 phase transformer.
3. Improve Power Quality
Install reactive power compensation devices and harmonic filters to stabilize the power grid and reduce interference to dry type isolation transformer in precision power supply systems.
4. Strengthen Daily Inspection and Maintenance
Regularly check tap changers, wiring terminals, insulation performance, and temperature rise to ensure the transformer runs under rated conditions.
IV. Company Introduction
JINSHANMEN TECHNOLOGY CO., LTD mainly produces oil immersed power transformers, dry-type power transformers, oil immersed three-dimensional coiled power transformers, dry-type three-dimensional coiled power transformers, mining explosion-proof dry-type transformers, mining explosion-proof mobile substations, amorphous alloy power transformers, on load capacity regulating power transformers, locomotive dry-type transformers, as well as prefabricated substations, modular substations, wind energy box type substations, high and low voltage switchgear and other transmission and distribution equipment.

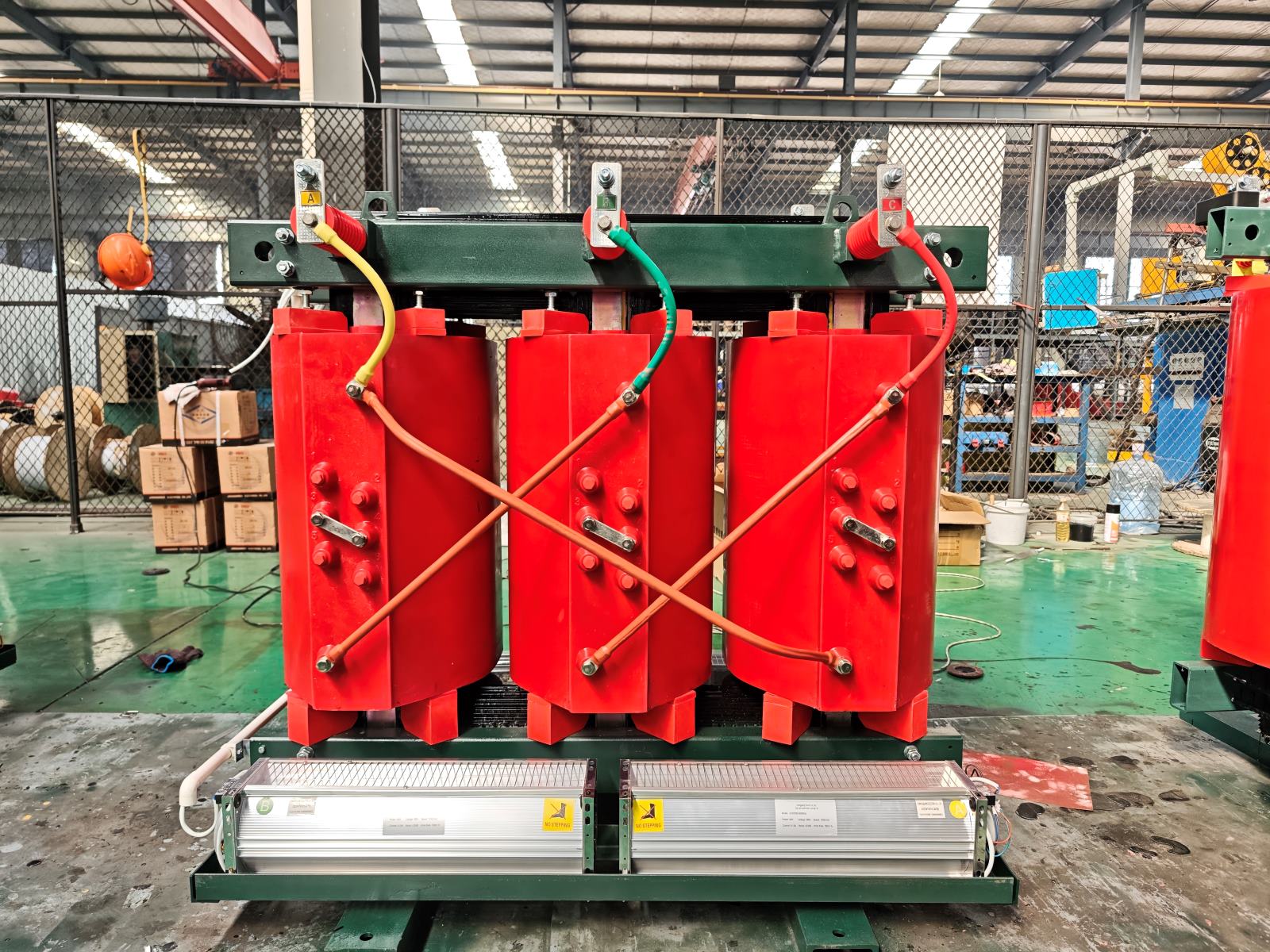

The company's 1000 kva 3 phase transformer features stable voltage regulation, strong overload capacity, and reliable operation. Its dry type isolation transformer provides excellent insulation performance, low noise, and stable output voltage for industrial, commercial, and precision power supply scenarios.
